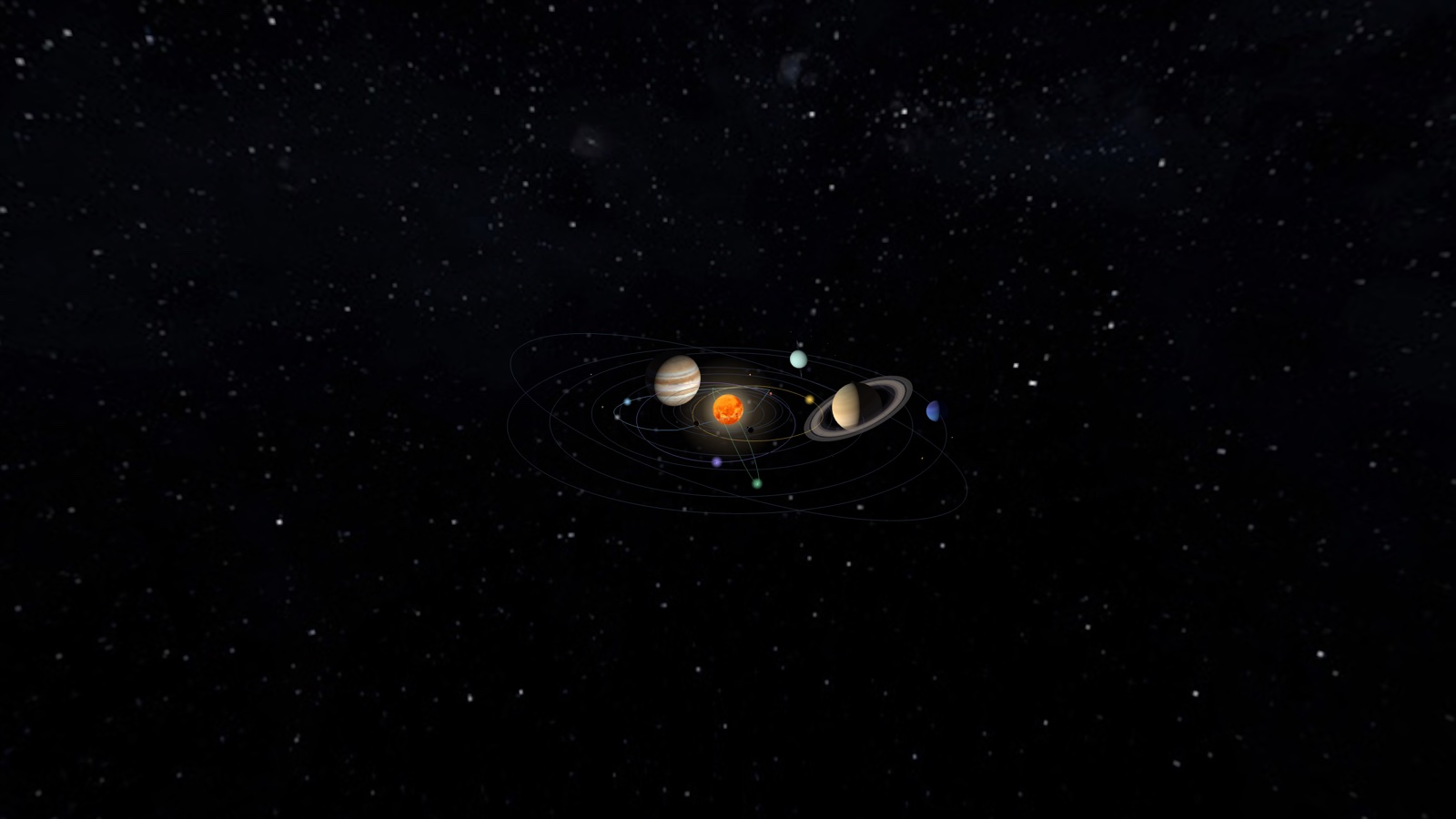

# SOLARGOD ▸ Orrery A standalone, browser-based 3D solar-system explorer — the interplanetary sibling of [GODSIGH](../GODSIGH), which watches Earth. Float above a compressed-scale ("MEGA") solar system with every world visible at once, moving on **real JPL ephemerides**; scrub a time bar across **six thousand years**; fly the camera into orbit around any planet, its moons circling, textured and tidally locked; toggle **TRUE scale** and watch the system animate out into its real, humbling emptiness. Live layers plot where Voyager 1, JWST and Parker Solar Probe are *right now*, real main-belt asteroids, comets, and near-Earth close-approaches on their **true orbits** — and a computed almanac of oppositions and elongations on the time bar. Everything is client-side, free, keyless, and runs **fully offline**. ![SOLARGOD](docs/hero.jpg) ## Quickstart ```sh python3 serve.py # stdlib only — no npm, no build step # open http://127.0.0.1:8147 ``` `serve.py` statically serves the app and proxies the JPL feeds a browser can't call directly (Horizons / SBDB / CAD — no CORS), with a disk cache in `cache/`. Three.js is **vendored** under `vendor/three/`, so the app runs with no CDN. The deterministic core (Sun, planets, moons, orbits, sky events, time travel) runs with **zero network calls** — positions are computed locally from Keplerian elements; network layers (spacecraft, asteroids, comets, close-approaches) are additive and fail soft. ## Verify Open **http://127.0.0.1:8147/verify.html** — an in-browser gate runner that checks the ephemeris against **JPL Horizons ground truth** (hard-coded checkpoints + live queries through the proxy). All **22 gates** should read PASS, e.g.: | Gate | Result | |------|--------| | Mars / Jupiter / Earth @ 2026-07-15 (heliocentric ecliptic AU) | Δ ≤ 3.3e-4 / 2.9e-3 / 3.9e-5 AU | | Kepler @ e=0.97 · orbitPath closes · frame round-trips · MEGA→TRUE keeps direction | exact | | Mars @ J2000 · Jupiter @ 1900 vs **live** Horizons | Δ 4.8e-5 / 2.0e-3 AU | | Main belt between Mars & Jupiter · Halley aphelion beyond Neptune | pass | | Voyager 1 @ 2026-07-15 = (−32.07, −136.21, +98.55) AU · JWST hugs Earth | Δ 0.002 / 0.011 AU | | **NEO** propagated miss vs CAD (real orbit) | ≤ 25% (median ~0.6%) | | **Sky events** — Mars opposition ±2 d of 2027-02-19 · Venus elongation cadence · nextEvent | pass | | **Deep time** — Jupiter @ 1000 BC · Mercury @ 2500 vs live Horizons (Table 2a/2b) | Δ 0.004 / 3.3e-5 AU | | **Event band** maps the ±2 yr window to full width | pass | ## Layers | Layer | Source | Default | Notes | |-------|--------|:------:|-------| | **Planets & orbits** | JPL SSD approximate elements (Standish) | on | 8 planets + Pluto, textured, MEGA-compressed orbit paths | | **Body labels** | — | on | names; the focused body's children also get distance labels | | **Moons** | NASA/USGS mosaics | on | 21 moons, per-parent compression, retrograde Triton; 8 with real surfaces, **tidally locked**; grayscale mosaics directorially tinted (Titan orange, Europa tan…) | | **Rings** | true km, scaled to parent | on | Saturn (textured annulus) · Uranus (schematic) | | **Spacecraft** | JPL **Horizons** (proxy) | on | Voyager 1/2, New Horizons, JWST, Parker, Juno, Lucy, Psyche — live distance + one-way light-time | | **Main belt** | JPL **SBDB** (proxy) | off | ~1500 main-belt asteroids, shared Kepler core | | **Comets** | JPL **SBDB** (proxy) | on | 1P/Halley, 2P/Encke, 67P, 96P — full orbits + anti-sunward 1/r² tail | | **Close approaches** | JPL **CAD + SBDB** (proxy) | off | ±30-day NEOs at their **true propagated positions** with real orbits (per-object fail-soft to a schematic ring); miss distance in lunar distances | | **Sky events** | computed (no network) | on | oppositions, conjunctions & greatest elongations as diamonds on the timeline's **event band**; click one to jump the clock | ## Controls - **Focus** — click any body (or use the Focus menu) → the camera flies into orbit around it; breadcrumb `SOL ▸ JUPITER ▸ EUROPA`; `Esc` steps out one level. - **MEGA / TRUE** — toggle the scale mode; the transition animates over ~2.5 s. - **Epoch** — `1800–2050` / `3000 BC – 3000 AD`: switch to the extended Table 2a/2b range (reloads the session, carried in the hash as `&e=1`). - **Body scale** — 1× / 100× / 1200× radius exaggeration. - **Time bar** — NOW, play/pause, reverse, rate presets (`1× · 1 min/s … 1 yr/s`, plus `1 decade/s · 1 century/s` for deep time), a scrubbable timeline, and an **event band** below it mapping the computed ±2 yr window to full width (a bracket on the main strip marks its extent). A **LIVE / SCRUBBED** chip mirrors GODSIGH. - **Info panel** — appears on focus: a grimoire card with a physical fact sheet, hand-written prose, a stylized portrait, and **live computed** facts (distance from Sun & Earth, sunlight age, orbital speed, day & year length, and the next opposition/elongation). Focusing Earth reveals a link to the GODSIGH world view. - **Shareable URLs** — the view serializes to the hash (`#f=&t=
